Products Description

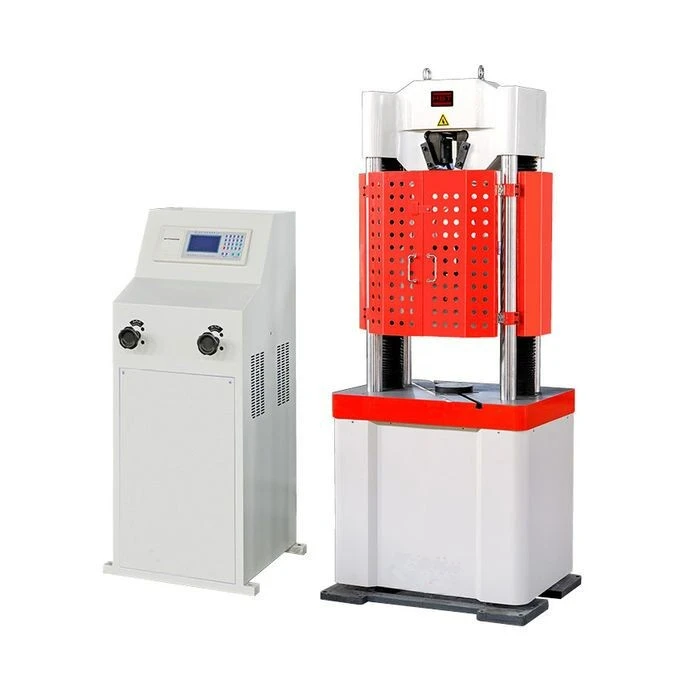

Our Ultimate Tensile Strength Testing Machine employs advanced sensing technology and precise measurement systems, enabling it to accurately measure various data of materials during the stretching process. Whether it is the high-strength test of metal materials or the detailed inspection of non-metal materials such as plastics and rubber, it can provide reliable results with extremely high precision.
Product Application
This Ultimate Tensile Strength Testing Machine is not limited to the testing of ultimate tensile strength. It also possesses powerful multi-functional features. It can conduct tests on the elongation at break of materials, visually presenting the deformation ability of the materials during the stretching to breaking process; it can carry out adhesion and peel strength tests, assisting in evaluating the bonding performance between materials; and it can complete bending and compression tests, comprehensively detecting the performance of materials under different stress conditions. Therefore, it is widely used in the testing of various materials such as rubber, plastic films, woven belts, packaging tapes, wires and cables, textiles, and metal wires.
This Ultimate Tensile Strength Testing Machine is not limited to the testing of ultimate tensile strength. It also possesses powerful multi-functional features. It can conduct tests on the elongation at break of materials, visually presenting the deformation ability of the materials during the stretching to breaking process; it can carry out adhesion and peel strength tests, assisting in evaluating the bonding performance between materials; and it can complete bending and compression tests, comprehensively detecting the performance of materials under different stress conditions. Therefore, it is widely used in the testing of various materials such as rubber, plastic films, woven belts, packaging tapes, wires and cables, textiles, and metal wires.
Product advantages
Our Ultimate Tensile Strength Testing Machine is constructed with high-quality materials and advanced manufacturing techniques, resulting in a sturdy and durable body structure. Its core internal components, such as imported electrical components, precise digital motors and digital speed control systems, ensure stable and powerful operation of the equipment. The single-space testing structure adopted, along with the sensors' ability to sense both tensile and compressive forces in both directions, enables seamless completion of both tensile and compressive tests, and allows for the selection of testing methods in advance. The drive mechanism uses a deceleration system to drive the precise screw pair for loading, featuring smooth transmission, low noise, high operating accuracy, and a wide speed adjustment range.
Product parameters
|
Model |
BT-300B |
BT-600B |
BT-1000B |
||
|
Maximum test force(kN) |
300 |
600 |
1000 |
||
|
Accuracy level |
1 |
||||
|
Collection method |
Spoke load sensor |
||||
|
Piston stroke(mm) |
200 |
||||
|
Clamping method |
Hydraulic |
||||
|
Test control method |
Microcomputer servo control |
||||
|
Compression test space(mm) |
600 |
||||
|
Tensile test space(mm) |
700 |
||||
|
Total power(kW) |
1.5 |
||||
|
Compression platen(mm) |
Φ148 |
Φ198 |
Φ225 |
||
|
Round sample clamping range(mm) |
Φ10-30 |
Φ13-40 |
Φ13-40 |
||
|
Flat sample clamping range(mm) |
0-10 |
0-15 |
0-20 |
||
|
Bending fulcrum span(mm) |
50-300 |
||||
|
Bending heart / stick diameter(mm) |
50/50 |
||||
|
Number of columns (screws) |
6 column |
||||
|
Mainframe dimensions(mm) |
810*560*1910 |
880*570*2050 |
940*640*2250 |
||
|
Host weight(kg) |
≈1620 |
≈2000 |
≈2600 |
||
|
Control cabinet size(mm) |
1010*640*840 |
||||
|
Control cabinet weight(kg) |
150 |
||||
