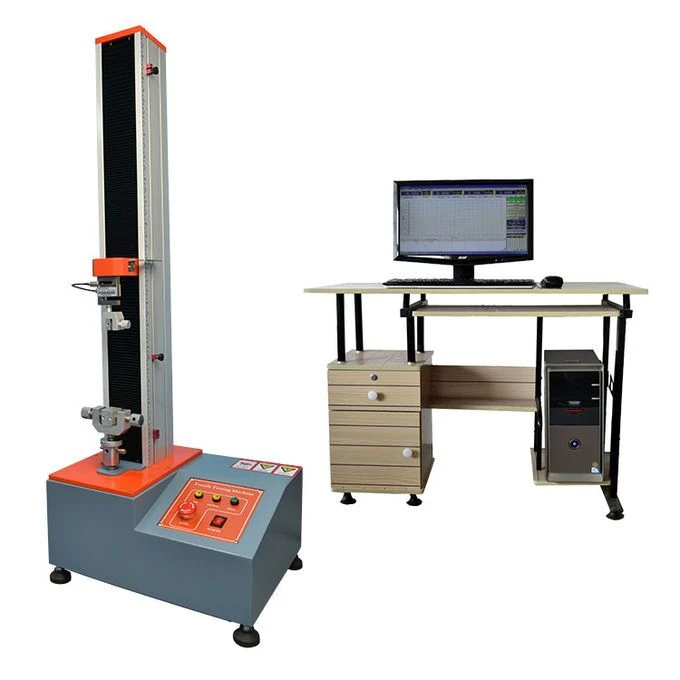

Tensile And Compression Testing Machine

The Tensile And Compression Testing Machine is computer controlled and widely used in mechanical properties tests of non-metallic materials such as rubber, plastic, wire and cable, textiles, waterproof materials, non-woven fabrics, and metal wires, metal foils, metal sheets and metal bars. It is also suitable for various finished product tensile, compression, peeling, shearing, tearing, bending (folding) tests with special fixtures. It can print multiple data, and can make graphic output comparisons based on different data. It has high control accuracy and easy operation; it adopts modular design, and has a full range of accessories and flexible matching.
The testing machine is mainly suitable for testing the mechanical properties of metals such as tension, compression, and bending. It can also realize constant stress, constant strain, creep, relaxation, axial, radial and other dead cycle tests. It can automatically calculate parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus, etc. according to GB, JIS, ASTM, DIN and other standards.

1. The Tensile And Compression Testing Machine can make curve categories: load-displacement, load-time, displacement-time, stress-strain, strain-time, stress-time.

2. The vertical and horizontal coordinates of the curve can be set arbitrarily.

3. Test data available;

1). Maximum force, minimum force, fracture value, upper and lower yield strength, tensile strength, compressive strength, elastic modulus, elongation, maximum, minimum, and average values ​​of the peeling interval, etc. (Customers need to select before ordering) It has multiple protections such as overload, overcurrent, overvoltage, undervoltage, overspeed, and stroke;

2). This test machine uses PC for data processing and analysis, and the test results can be automatically saved. After the test, the test curve can be called up again, and the test process can be reproduced by curve traversal, or curve comparison and curve amplification can be performed, and a complete test report and test curve can be printed in real time.

The data results are exported in the crystal report format currently used by the national standard.

GB/T16491-1996 Electronic universal testing machine;

GB/T 228.1-2010 Metallic materials - Tensile test - Part 1: Test method at room temperature;

GB/T 528-2009 Vulcanized rubber or thermoplastic rubber - Determination of tensile stress-strain properties;

GB/T 1040-2006 Tensile properties test method;

GB/T 1041-2008 Plastics - Compression properties test method;

GB/T 9341-2008 Plastics bending properties test method;

IS0 527-1993 Determination of tensile properties of plastics;

GB/T 13022-91 Tensile test method for plastic films;

ISO 604-2002 Plastics - Determination of compression;

ISO 178-2004 Plastics bending test;

ASTM D 638-2008 Standard test methods for tensile properties of plastics;

Various tests specified by national or international standards such as GB, ISO, ASTM, BS, DIN, and JIS.
