Products Description

Small Tensile Tester is a physical property testing instrument for testing products. It is mainly used to evaluate key indicators such as tensile strength, peeling performance, tear resistance and heat seal strength of materials. The equipment provides data support for the quality control of packaging materials by accurately measuring the tensile deformation resistance and interface bonding strength of materials. As of 2025, its measurement system has an accuracy of ±1% and a resolution of 1/200000, supporting the testing needs of multiple types of samples such as films, adhesives, and medical materials. Its application areas cover industrial scenarios such as food packaging, medical devices, and textiles.
Through standardized testing processes such as stretching, peeling, and tearing, the mechanical properties of plastic composite films are quantitatively analyzed, focusing on the ductility, bonding strength and anti-destruction ability of materials under load:
The tensile test can determine the material's breaking strength and elongation, reflecting the ability of packaging materials to withstand transportation loads;
The peel strength test is used to evaluate the bonding force between composite film layers, which directly affects the anti-leakage performance of packaging bags;
The heat seal strength test is suitable for tensile strength, peel strength, deformation rate and other performance tests of materials such as plastic films and composite films.

What is a tensile tester used for?

Small Tensile Tester is mainly used to evaluate key indicators such as tensile strength, peeling performance and heat sealing strength of materials, and is widely used in quality control scenarios of the entire packaging material industry chain. ‌
‌Food packaging industry‌: Testing the puncture resistance and sealing integrity of products such as aluminum-plastic composite films and stand-up bags.
‌Medical field‌: Testing the bonding strength of catheter components and the mechanical properties of dressing substrates. ‌
‌Other material testing‌: Applicable to the physical property testing of non-packaging materials such as rubber and textiles.

It is also widely used in metrological quality inspection; rubber and plastics; metallurgy and steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civil nuclear energy; civil aviation; colleges and universities; scientific research laboratories;

Standards

GB/T16491-1996 Electronic universal testing machine;

GB/T 228.1-2010 Metallic materials - Tensile test - Part 1: Test method at room temperature;

GB/T 528-2009 Vulcanized rubber or thermoplastic rubber - Determination of tensile stress-strain properties;

GB/T 1040-2006 Tensile properties test method;

GB/T 1041-2008 Plastics - Compression properties test method;

GB/T 9341-2008 Plastics bending properties test method;

IS0 527-1993 Determination of tensile properties of plastics;

GB/T 13022-91 Tensile test method for plastic films;

ISO 604-2002 Plastics - Determination of compression;

ISO 178-2004 Plastics bending test;

ASTM D 638-2008 Standard test methods for tensile properties of plastics;

Various tests specified by national or international standards such as GB, ISO, ASTM, BS, DIN, and JIS.

What is the primary purpose of a tensile test?

Tensile Test is one of the most basic experiments in material mechanical properties testing. Its main purpose is to use the Small Tensile Tester to measure the key mechanical properties of materials under static loads by applying axial tension, providing data support for engineering design, quality control and material research.
Core purpose:
Determine the strength characteristics of materials;
Yield strength;
Tensile strength;
Evaluate the plastic deformation capacity of materials;
Elongation after fracture;
Shrinkage of cross-section;
Obtain stress-strain curves;
Analyze the constitutive relations of materials such as elastic modulus and hardening behavior;
Verify whether the material meets the standards.

Technical peremeters

Capacity (1 sensor)	100KG～2000KG(2T)
Test effective width	400mm
Stretching stroke (without fixture)	1200mm
Device dimensions	700×500×1800mm
Device weight approx.	200Kg
Force measurement accuracy	Better than ±0.5%
Deformation indication accuracy	Better than ±0.5%
Load sensing	Anhui Aipik S-type force sensor
High resolution	1/250000
Magnification	24-bit AD stepless amplification
Unit selection	N, kg (including multiple measurement units including international units, users can also customize the required units)
Test speed range	0.01~300 mm/min (can be set arbitrarily)
Speed control accuracy	±0.2% (0.5 level)
Overload setting protection function	When the set test force exceeds 10%, the system automatically shuts down for protection
Stroke setting protection function	Stroke upper and lower limit position setting protection,
Force transmission method	Taiwan TECO servo motor + servo drive controller + Taiwan TBI precision screw
Power consumption	700W; (configuration selected according to different capacities)
Special software	Reference to the software version of the computer measurement system
Test range	Can do tension, pressure, fatigue, bending, folding and shear tests
Power supply used	1ø, 220V 50/60 Hz

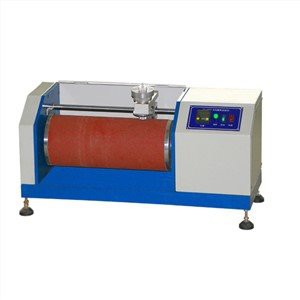

Hot Tags: small tensile tester, China, suppliers, manufacturers, factory, buy, cheap, Din Abrasion Tester, Horizontal Universal Testing Machine, Portable Ultrasonic Thickness test Equipment, Rubber and plastic abrasion resistance tester, Textile Testing Equipment, Thickness Gauge Thickness Gauge
