Overview
The computer servo double-column universal material testing machine is a new type of material testing machine that combines electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity in the measurement and control of load and displacement. Automatic control tests of constant velocity loading and constant velocity displacement can also be carried out. It is simple and convenient to operate, and is especially suitable as a testing instrument for controlling product quality on production lines. This series of models is mainly suitable for testing non-metallic and metallic materials with test loads below 30kN.
Usage
Computerized servo-type universal material testing machine This testing machine is suitable for flexible materials with large deformation such as rubber, plastic, and leather. It can complete tensile, tearing, bonding strength, peeling and other tests. It is equipped with a large deformation extensometer with special terms for measuring sample deformation, which is suitable for testing the mechanical properties of materials with large deformation.
Features
1. Wide Range of Testing: Universal Tensile Testing Machine can test the mechanical properties of materials including tension, compression, flexure, shear, and peel. It means that it can be used to evaluate the strength, ductility, elasticity, and other critical properties of materials.
2. High Precision: The machine is designed to provide accurate and consistent results. It comes equipped with advanced sensors and software that enable it to measure the deformation, force, and other parameters with high precision.
3. Customizable: Universal Tensile Testing Machine can be customized to meet the specific needs of different industries. Users can adjust the speed, load capacity, and other parameters to ensure that the machine performs optimally for their particular applications.
4. User-Friendly: Operating the machine is straightforward. It comes with a user-friendly interface and software that allow users to set up tests, run them, and analyze the results easily.
5. High Safety Standards: Universal Tensile Testing Machine comes with several safety features that ensure that accidents are prevented. It is equipped with emergency stop buttons, overload protection, and other features that make it safe to operate.
Standard
Meets the standard GB/T 16491-2008 electronic universal testing machine, and also complies with GB/T528, GB/T529, ASTM D412, ASTM D638, GB/T 1040, GB/T 8808, GB/T 13022, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 16825, GB/T 17200, GB/T 3923.1, GB/T 2611, GB/T 6344, GB/T 20310, GB/T 3690, GB/T 4944, GB /T 3686, GB/T 6344, GB/T 10654\ GB 36246-2018 and many other domestic and international test standards.
Technical Parameters
|
Model |
BT-UT8001 |
|
Max load |
5KN,10KN, 20KN |
|
Accurate grade |
1 % /0.5 % |
|
Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
|
Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
|
Tester resolution |
Max load 1/200000,regardless of inside and outside,constant the resolution |
|
Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
|
Effective testing width |
390mm(can be widened according to customer's requirement ) |
|
Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer's requirement) |
|
Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
|
Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
|
Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
|
Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
|
safety |
Electronic-limit protection |
|
Testing platform moving device |
Fast /slow two speeds to control,can jog |
|
Return back |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%,automatic protection |
|
fixture |
A set of tensile fixture |
|
Machine size |
80x55x220cm(length*width*height) |
|
Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
|
Power supply |
220V,50HZ, |
|
Power |
0.4KW(depending on different demand of force, using different motor) |
|
Machine weight |
(about)250 Kg |
|
Units |
Kg, N, LB, TON, can be exchanged. |
Industries where BT-UT8001 can also be applied to:
Widely used in measurement and quality inspection; clothing and footwear industry; rubber and plastics; metallurgy and steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wires and cables; packaging materials and food; instrumentation; medical equipment; civil nuclear energy; civil aviation; higher education Universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments; building materials and ceramics; petrochemical industry; other industries.
Items can be tested in the testing machine
Common items: ( display data and calculation )
1.tensile stress
2.tensile strength
3.tensile strength
4.rate of elongation at break
5.fixed stress
6.rate of stress at break
7.stress strength
8.tear strength
9.the value of force at any point
10.rate of elongation at any point
11.pull-out strength
12.force of adhesion and the peak of force

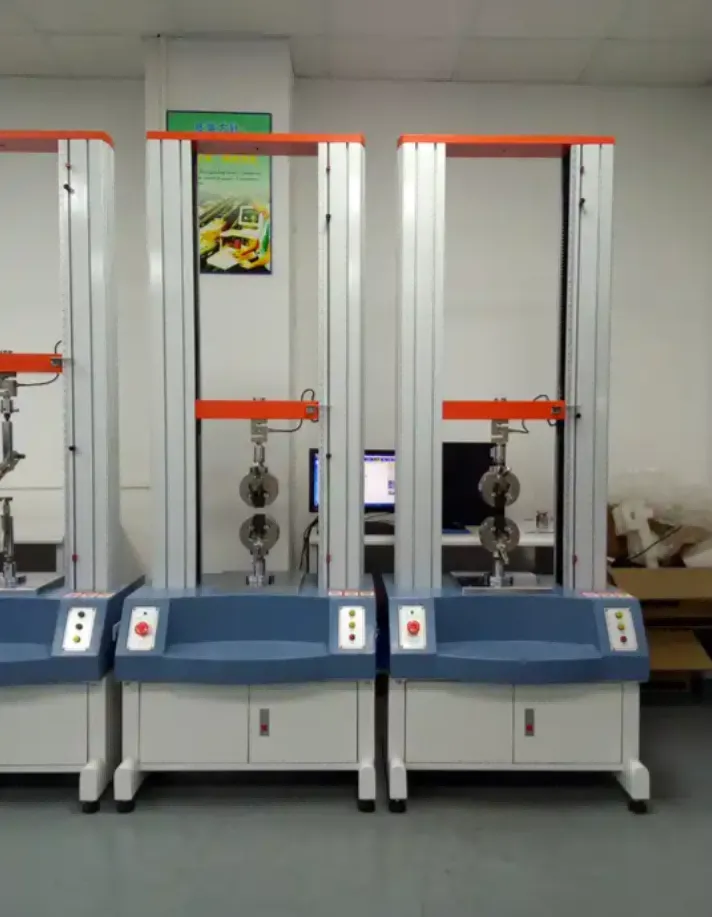

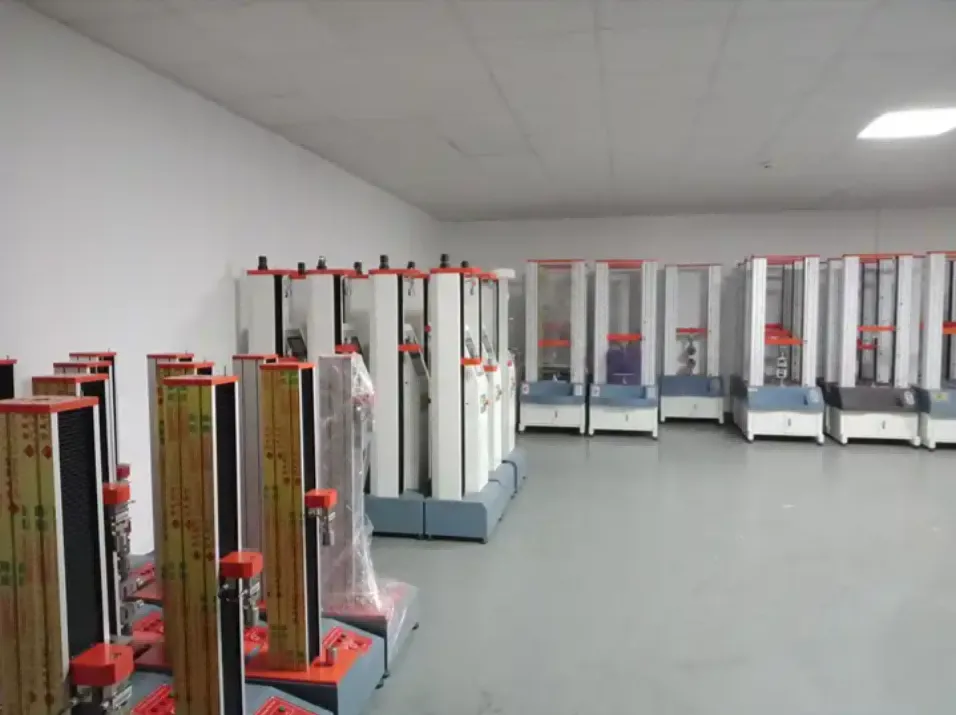

Show room
