Products Description

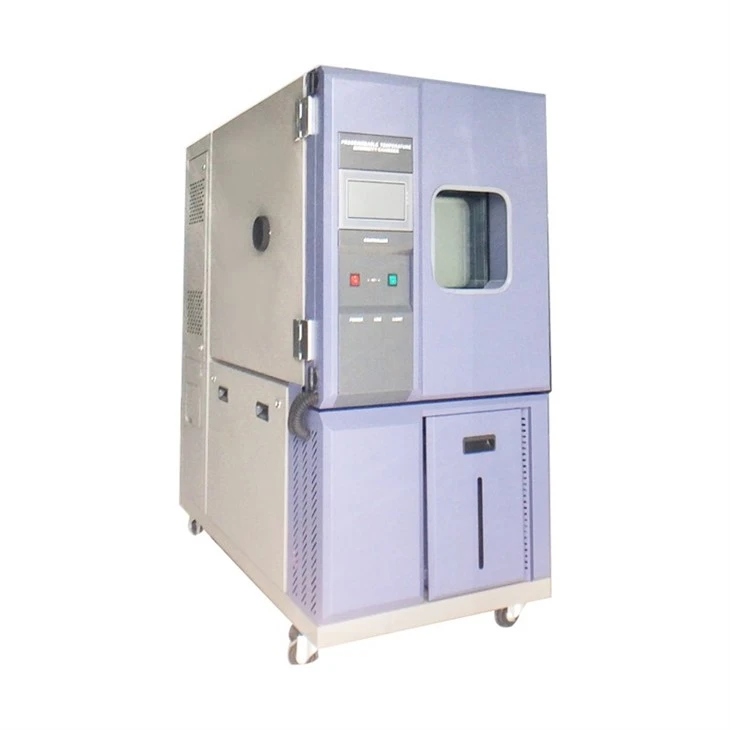

Environmental Stress Chamber is to expose the product to a closed and constant temperature and humidity (optional) environment, after a period of environmental stress test to verify the thermal effect of the product after the parameter changes or other physical characteristics changes. It is a comprehensive standard reliability test instrument manufactured according to the variety and quantity of the user's experimental samples, the limited space of the laboratory site and the factors such as the entrance and exit aisle, door and use environment of the equipment.
Technical parameter
Environmental Stress Chambers are available in several standard sizes to meet most common requirements.
|
Model |
B-TH-80 (A~G) |
B-TH-150 (A~G) |
B-TH-225 (A~G) |
B-TH-408 (A~G) |
B-TH-800 (A~G) |
B-TH-1000 (A~G) |
|
Inside size W*H*D (cm) |
40*50*40 |
50*60*50 |
60*75*50 |
80*85*60 |
100*80*100 |
100*100*100 |
|
Outside size W*H*D (cm) |
95*145*105 |
105*155*115 |
115*165*115 |
135*185*120 |
155*185*146 |
155*190*160 |
|
Temperature range |
0℃~+150℃ |
|||||
|
Humidity range |
20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) |
|||||
|
Temperature and humidity chart |
|
|
|
Temperature deviation |
≤ ±2.0 ℃ (no load, constant state) |
|
|
Temperature resolution |
0.1℃ |
|
|
Temperature uniformity |
≤ ±2℃ (no load, constant state) |
|
|
Humidity fluctuation |
±1.0%R.H |
|
|
Humidity deviation |
≤ ±2%R.H |
|
|
Humidity uniformity |
>75%RH: ≤±2-3%RH; <75%RH: ≤±3-5%RH (humid heat type only) |
|
|
Humidity resolution |
1.0%R.H |
|
|
Heating time |
3~5℃/min (non-linear no-load) |
|
|
Cooling time |
0.7~1.2℃/min (non-linear no-load) |
APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Standard Compliance
Environmental Stress Chamber meets most international standards due to its excellent performance.
1. IEC68-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC68-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
3. IEC68-2-3 Environmental testing for electric and electronic products - Part 2: Testing method test Cab: Damp heat Steady state
4. IEC68-2-30 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
5. IEC68-2-14 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
6. MIL-STD-810D High temperature test
7. MIL-STD-810D Low temperature test
8. MIL-STD-810D Damp heat test
BOTO GROUP is manufacturer of environmental test chambers with over 20 years of experience.
Focusing on the production of various environmental testing equipment, the product series include: Environmental Stress Chamber, temperature and humidity test chamber, UV aging test chamber, Xenon aging test chamber, salt spray test chamber,mechanical testing machine, etc.
Welcome to contact us and send inquire if have any interest!
