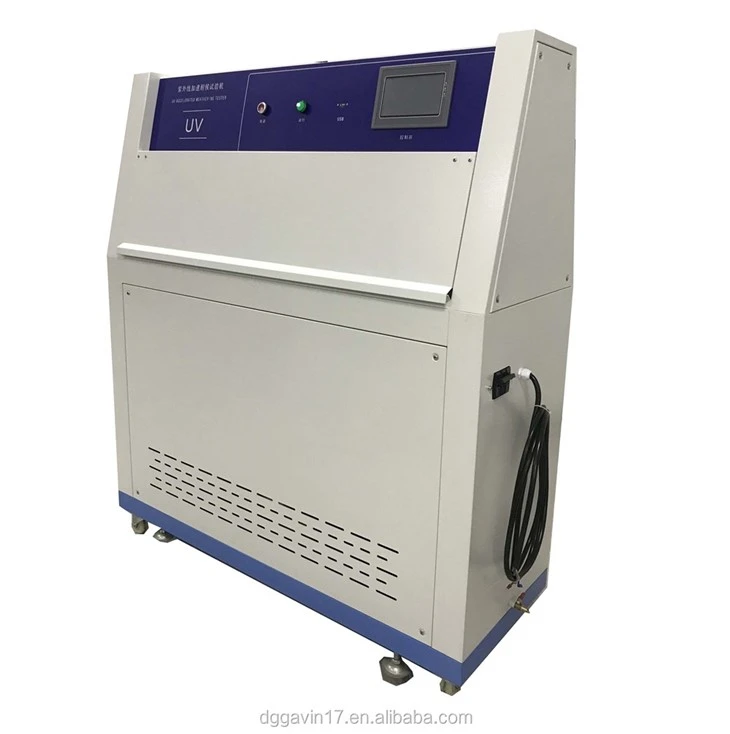

Soothing-Ambience-of-a-UV Sun Simulate Test Chamber
Use
Mainly used in national defense industry, aviation industry'automobile parts, electronic parts, plastics industry, food industry and other related product development, straightening management engineering test specifications.
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ：
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH. We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling. 3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
ABOUT US
BOTO GROUP LTD.Is a professional manufacturer of environmental test equipment and test service. Our company was established in 1998,the plant covers 55,000 square meters and a construction area of 6,800 square meters, existing 160 workers and we can provide operation video for machines.
The policy the company adheres to:TODAY'S QUALITY IS THE MARKET FOR TOMORROW.
SERVICE :If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service:
1.Device installation;
2.Equipment Operation Technology training;
3.Equipment Calibration;
4.Daily maintenance maintenance of equipment
Free technical training for visiting factories 24-hour Online contact Free software upgrades Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Mail Seamless Docking;
3.Video Conferencing;
4.Artificial free door-to-door service
Our Team
Dimensional Specifications:
Internal Dimensions (WxDxH): 1170 x 450 x 500 mm
External Dimensions (WxDxH): 1300 x 550 x 1500 mm
Number of Lamps: 8 UV lamps
Lamp Life: Approximately 1500 hours
Performance Specifications:
Temperature Range: 10°C to 70°C
Humidity Range: 55% to 95% RH
Wavelength Range: UVA-340 (315-400 nm) or UVB-313 (280-315 nm)
Irradiance Control: 0.5 W/m² to 1.5 W/m²
Electrical Specifications:
Power Supply: 220V, 50Hz
Power Consumption: 5 kW
Controller:
Type: 7-inch color touch-screen programmable controller
Connectivity: USB and Ethernet ports for data logging and chamber control via PC
Construction:
Material: 304 stainless steel interior with a powder-coated steel exterior
View Window: 200 x 300 mm UV-stabilized transparent viewing area
Features:
UV Light Source:
Lamps: UVA-340 or UVB-313 fluorescent ultraviolet lamps
Uniformity: +/- 10% across the specimen surface
Advanced Control System:
UV Intensity Control: Automatic compensation for lamp aging and variability
Temperature Accuracy: +/- 1°C
Programmability: Up to 99 programs, 99 steps each
Environmental Conditioning:
Rainfall Capabilities: Adjustable water spray system
Humidity Control: Direct water spray or steam for humidity
Data Recording and Analysis:
Data Logging: Real-time recording for temperature, humidity, and UV intensity
Software: Comprehensive logging software with graphical outputs and ISO degradation profiles
Safety and Compliance:
Standards Compliance: ASTM G154, ISO 4892-3
Safety Features: Over-temperature protection and emergency shut down interlock
Customization:
Chambers: Customizable chamber size and lamp configuration upon request
