Industrial Outdoor Products Rain Testing and Waterproof Test Chamber

Industrial Outdoor Products Rain Testing and Waterproof Test Chamber

● Large viewing window with Interior lighting, easy to observe.
● Standard and Custom, We have different types for different sizes of samples.
● Water circulation system to save water and cost.

Product Introduction

We always adhere to technology as the guide, with continuous technological transformation and technological innovation to make the quality of our Ozone Measuring Test Chamber, Industrial NDT Testing Machine, Checkweigher Machine steadily improve. We welcome OEM projects and designs. We strengthen the post-market maintenance and management, and do a good job of post-service work. High quality service not only for our company to win profits, but also for our company to win a wide range of markets, shape the corporate image, create our brand.

Advantage of IPX4 IP Waterproof Water Resistance Test Rain Spray Chamber:

1. Large viewing window with Interior lighting, easy to observe.

2. Standard and Custom, We have different types for different sizes of samples.

3. Water circulation system to save water and cost.

Product Name

Rain Test Chamber rain spray test chamber

Model

BT-800

Internal dimensions(mm)

900*900*900 D*W*H

Overall dimensions(mm)

1120*1460*1660 D*W*H

Oscillating tube radius

400mm

Spraying hole diameter

φ0.4mm

Hole spacing

50 mm

Oscillating tube range

±45°, ±60°, ±90°, ±180°(theoretical value)

Turntable rotation speed

1r/min, or steeples speed regulating (optional)

Controller

Programmable color display touch screen controller, PC Link with software, R-232 interface

Water pressure control

Flow meter

Observation window

Large viewing window with wiper

Water supply system

Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving

Safety protection device

Electric leakage, short circuit, motor overheating, over-current protection

Interior material

SUS304 Stainless steel

Exterior material

Steel plate with protective coating

Power Supply

380V 50HZ

Standard

ISO 20653, IEC 60529


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

_20210705210621

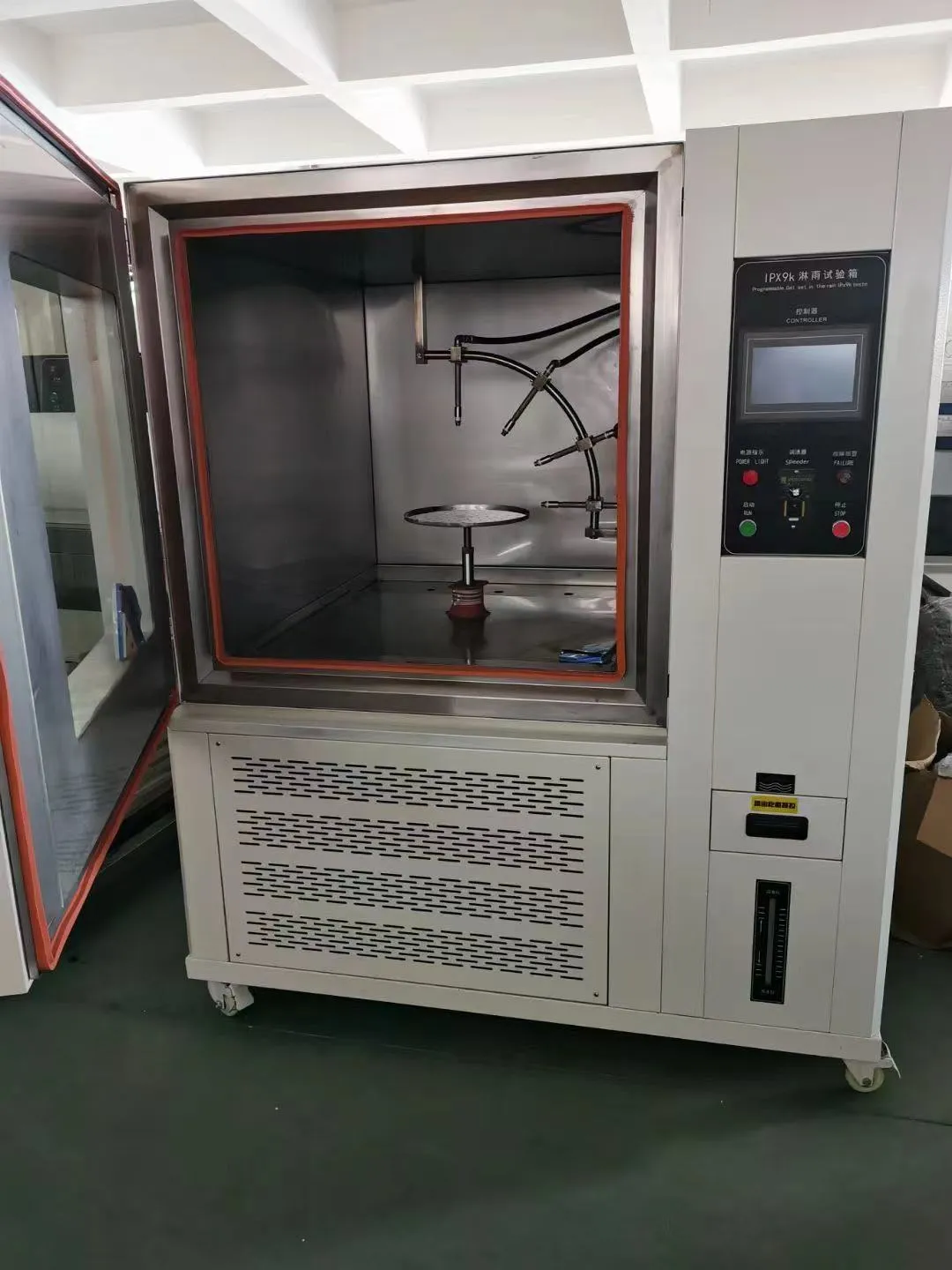

_20210705210611

_20210705210659



1625493821(1)



Onsite service:

1. Device installation;

2. Equipment Operation Test Technology training;

3. Equipment Calibration;

4. Daily maintenance and maintenance of equipment

5. Free technical training for visiting factories

6. 24-hour Online contact

7. Free software upgrades


Free information:

1.Product Instruction;

2.Product operation instruction/video;

3.Experiment Test (test application, test report)


Device problem handling:

1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;


After sales service:

36 Months Warranty, Lifelong After-sales Service

1. Our company will repair the product, if the products raised hardware problems caused by product itself rather than human error within 3 years warranty period since the date of dispatching by the customer.

2. Our company repairs the products, and the service is free always.

Ways of service

3. Solve the problems in using the test chambers timely and Effectively

4. Response within 6 hours once got questions from customers.

5. Engineers available to service machines overseas to install and commissioning

6. Training how to install, operate and maintain the machine

7. On-site diagnosis and repair / Online diagnosis and repair

8. Business Negotiations


1620822830(1)


Payment:

1. Price terms: EXW, FOB, CIF Shanghai or Shenzhen.

2. Payment terms: L/C. Western Union. Paypal. T/T.

3. Sample lead time: 3-8 days.

4. Mass production time: 10-15 days depending on the order qty.

5. Delivery method time: By air, by sea or combined transportation.

6. Door to door service with Express: Fedex, DHL, UPS, EMS.

We are one of the high-level enterprises in the Industrial Outdoor Products Rain Testing and Waterproof Test Chamber industry, adhering to the principle of 'quality first, customer first', we will serve customers with a sincere attitude. Our company will actively expand the scale of the company according to the enterprise's own trade characteristics and product features. We are not sticking to one pattern, discerning talents, and free to use outstanding young talents to provide a stage for them to innovate bravely and stand out.
