Scope of use:

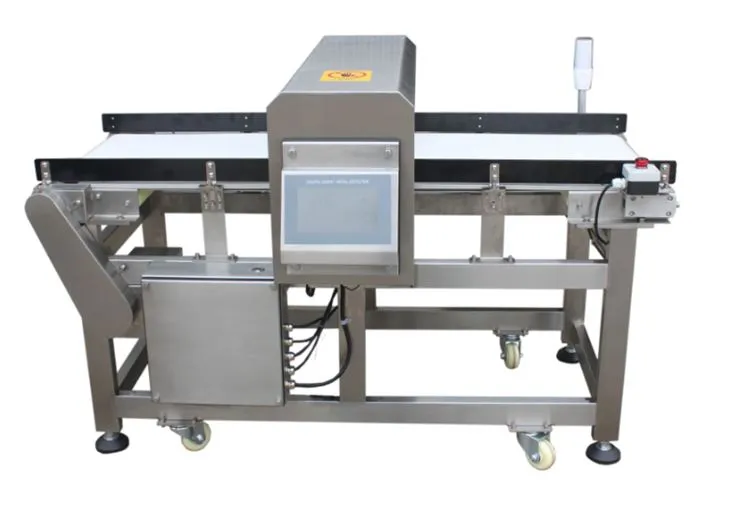

Metal Detector For Food industry is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks, fruits, Sugar, Salt and vegetables. Rejection System Food Metal Detector can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen.

Product description:
Metal Detector For Food industry is new arrival food metal detector. It has touch screen, 10 level adjustable sensitivity and memory 10 kinds of products etc. But also it has more higher reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product's features. Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer's requirements, which can improve production efficiency and save labor costs.
9. Suitable for wet, dry, dust, dew environment, made of stainless steal, has HACCP attestation, waterproof IP65



Product paramenters
Model | BOTO-3015 | BOTO-4015 | BOTO-4020 | BOTO- | BOTO-5020 | BOTO-5030 | BOTO-6040 | |
Detector Dimension (Width*HeightMM) | 300*150 | 400*150 | 400*200 | 400*250 | 500*200 | 500*300 | 600*400 | |
Belt width(MM) | 280 | 370 | 370 | 370 | 470 | 470 | 570 | |
Transfer speed | 25m / min | |||||||
Transfer ability | 5KG | 5KG | 7KG | 7KG | 7KG | 7KG | 25KG | |
Sensitivity | FE | 1.0mm | 1.0mm | 1.2mm | 1.5mm | 1.5mm | 2.5mm | 3.0mm |
NON-FE | 1.5mm | 1.5mm | 2.3mm | 2.5mm | 2.0mm | 3.0mm | 4.0mm | |
SUS304 | 2.0mm | 2.3mm | 2.5mm | 3.0mm | 2.5mm | 3.5mm | 4.5mm | |
Operation interface | 10 inches color LCD screen | |||||||
Operating mode | Plane key input (touch optional) | |||||||
Item memory | 100 Products | |||||||
Stable way | Automatic phase adjustment | |||||||
Alarm mode | Buzzer, Alarm lamp, Alarm stop Run | |||||||
Rejector(optional) | Flip Bar Type, Air Blast Type, Pusher on Roller Type, Pusher on Belt Type, Drop Flap Type, Chute Type, Conveyor Retraction Type(other types need to customization) | |||||||
External interface | USB, RS232/485/422, to store data, Voltage signal or Switch signal, TCP/IP(optional) | |||||||
Corollary equipment | Ink-jet printer, Check Weigher, Online printer, Labeling machine, etc | |||||||
Power Source | 380/220/110V 50/60Hz | |||||||
Power Output | About 200W | |||||||
Measurement | SUS304 | |||||||
Degree of protection | IP54/IP65(IP66 need to be custom) | |||||||
Environment | 0℃-50℃ | |||||||
Remark | 1. Above the detection sensitivity is empty machine belt surface accuracy and practical sensitivity by products, environment or metal into position influence. | |||||||
