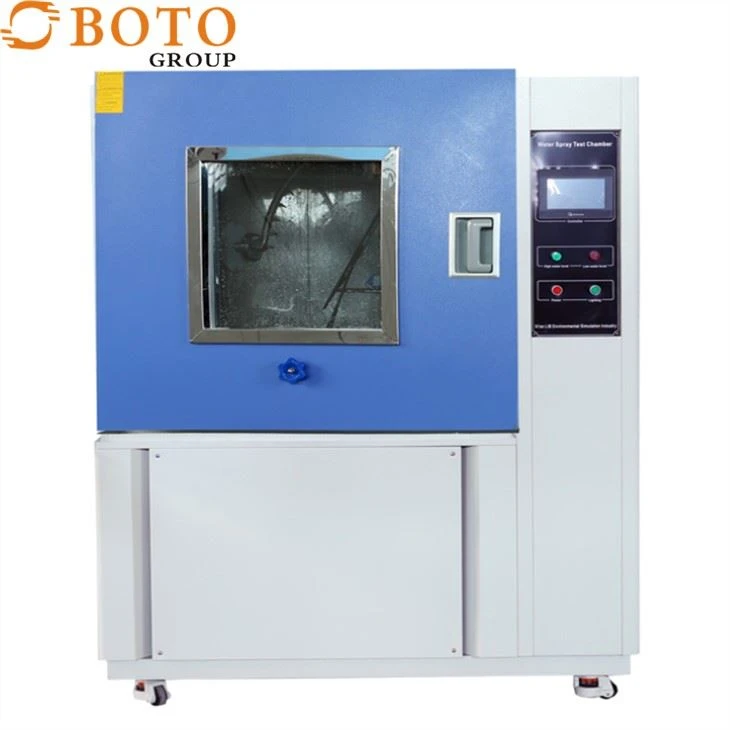

Rain Test Chamber rain spray test chamber
Advantage of IPX4 IP Waterproof Water Resistance Test Rain Spray Chamber
● Large viewing window with Interior lighting, easy to observe.
● Standard and Custom, We have different types for different sizes of samples.
● Water circulation system to save water and cost.
Product Name | Rain Test Chamber rain spray test chamber |
Model | BT-800 |
Internal dimensions(mm) | 900*900*900 D*W*H |
Overall dimensions(mm) | 1120*1460*1660 D*W*H |
Oscillating tube radius | 400mm |
Spraying hole diameter | φ0.4mm |
Hole spacing | 50 mm |
Oscillating tube range | ±45°, ±60°, ±90°, ±180°(theoretical value) |
Turntable rotation speed | 1r/min, or steeples speed regulating (optional) |
Controller | Programmable color display touch screen controller, PC Link with software, R-232 interface |
Water pressure control | Flow meter |
Observation window | Large viewing window with wiper |
Water supply system | Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving |
Safety protection device | Electric leakage, short circuit, motor overheating, over-current protection |
Interior material | SUS304 Stainless steel |
Exterior material | Steel plate with protective coating |
Power Supply | 380V 50HZ |
Standard | ISO 20653, IEC 60529 |
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
After Sales Service
36 Months Warranty, Lifelong After-sales Service
● Our company will repair the product, if the products raised hardware problems caused by product itself rather than human error within 3 years warranty period since the date of dispatching by the customer.
● Our company repairs the products, and the service is free always.
Ways of service
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
Payment
1. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
2. Payment terms: L/C. Western Union. Paypal. T/T.
3. Sample lead time: 3-8 days.
4. Mass production time: 10-15 days depending on the order qty.
5. Delivery method time: By air, by sea or combined transportation.
6. Door to door service with Express: Fedex, DHL, UPS, EMS.
Hot Tags: laboratory environmental test chamber for rain spray tester chamber, China, suppliers, manufacturers, factory, buy, cheap
