Product Description

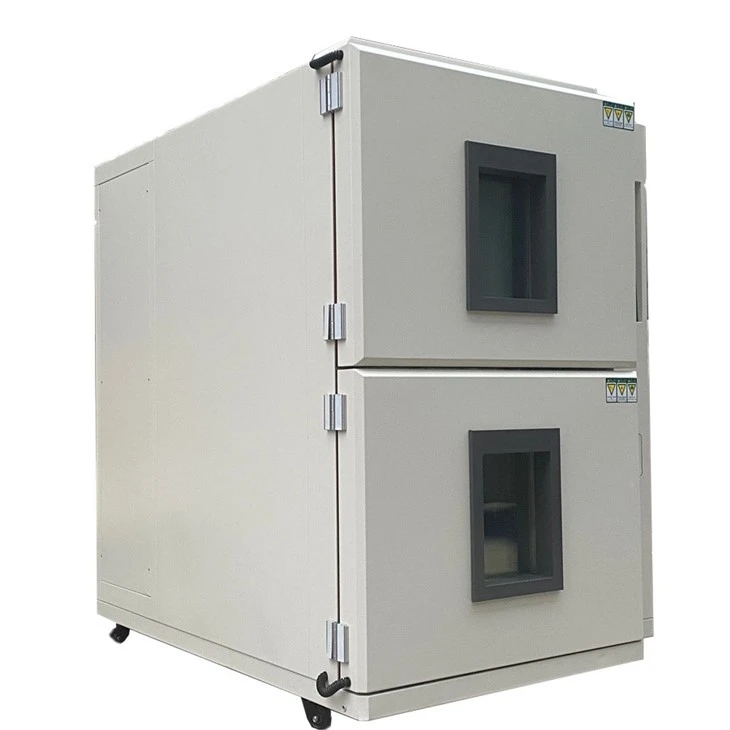

Hot And Cold Chamber is an environmental testing device used to test the performance of materials under extreme temperature changes. It can instantly switch from high temperature to low temperature, simulate the continuous change of materials in extremely high and low temperature environments, and detect chemical changes or physical damage caused by thermal expansion and contraction of materials. This test method can be completed in the shortest time and is suitable for reliability testing of various materials.
Application
Electronic and electrical industry: Hot and cold chamber can be used to test the performance of electronic and electrical components, automation components, communication components, etc. in high and low temperature environments to ensure the reliability and durability of products.
Automotive industry: This chamber is used to test the durability of automotive accessories, engines, tires, etc. in extreme temperatures to ensure the performance of automotive parts in various environments.
Aerospace industry: Used to simulate temperature changes in space environments, test the materials and structures of spacecraft, and ensure their stability and safety in extreme temperatures.
Rubber and plastic industry: Used to test the physical and chemical properties of rubber and plastic products under temperature changes to ensure their use effect at different temperatures.
Defense industry: Used to test BGA, PCB substrates, electronic chip ICs, semiconductor ceramics and polymer materials to ensure their performance stability in high and low temperature environments.
Technical solution
|
Model |
B-TH-80 (A~G) |
B-TH-150 (A~G) |
B-TH-225 (A~G) |
B-TH-408 (A~G) |
B-TH-608 (A~G) |
B-TH-800 (A~G) |
B-TH-1000 (A~G) |
|
Inside size WxHxD (cm) |
40x50x40 |
50x60x50 |
50x75x60 |
80x85x60 |
80x95x80 |
100x100x80 |
100x100x100 |
|
Outside size WxHxD (cm) |
95x145x105 |
105x175x97 |
115x190x97 |
135x185x120 |
145x185x137 |
145x210x130 |
147x210x140 |
|
Temperature range |
0℃~+150℃ |
||||||
|
Humidity range |
20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) |
||||||
|
1. Temperature range |
0℃~ +150℃ |
|
2. Humidity range |
20%R.H ~ 98%R.H |
|
3.Temperature and humidity chart |
|
|
4. Temperature deviation |
≤ ±2.0 ℃ (no load, constant state) |
|
5.Temperature resolution |
0.1℃ |
|
6.Temperature uniformity |
≤ ±2℃ (no load, constant state) |
|
7. Humidity fluctuation |
±1.0%R.H |
|
8. Humidity deviation |
≤ ±2%R.H |
|
9. Humidity uniformity |
>75%RH: ≤±2-3%RH; <75%RH: ≤±3-5%RH (humid heat type only) |
|
10. Humidity resolution |
1.0%R.H |
|
11. Heating time |
3~5℃/min (non-linear no-load) |
|
12. Cooling time |
0.7~1.2℃/min (non-linear no-load) |
Structrual feature
The Structural feature of hot and cold chamber as below:
|
1. Structure |
Stainless steel construction |
|
2. Material |
a. Inner chamber SUS304 stainless steel; b. Exterior stainless steel; c. Thermal insulation material: PU foam + glass wool. |
|
3. Door |
a.Single side door opening; b.1 vacuum layer observation Windows with a set of lighting ; c. The window frame/door frame is equipped with electric heating (automatic adjustment) anti-frost and anti-condensation device; d. The door frame adopts high and low temperature resistant silicone rubber sealing strip. |
|
4. Control panel |
a. Temperature and humidity controller*1; b. Power push button switch*1; c. Observe window lighting switch*1; d. USB data export port*1. |
|
5. Pressure relief balance port |
Bottom 1/2 inch pressure balance and drain common port *1. |
|
6. Test hole |
One φ50mm lead hole is opened on the left side of the instrument, and it is equipped with hole cover and silicone rubber plug. |
|
7. Wheel |
The bottom of the instrument is equipped with 4 moving casters and 4 horizontal fixed foot cups. |
Advantage
Hot and cold chamber has strong performance and is very competitively priced. Its advantages can be seen below:
Easier installation:The equipment is delivered as a complete machine and can be put into use after connecting the power supply and water pipes.
Top quality:All components are from world-renowned brands, which are safe and reliable, have a long life cycle and more accurate data.
High durability:With our advanced design technologies and use of high-grade materials,The body of the equipment is made of high-quality brushed stainless steel, which has beautiful appearance and solid quality.
Ultimate performance: Our constant temperature and humidity test chamber can reach a maximum high and low temperature of -70℃~+180℃, and the humidity can be customized to 10%~98%R.H., which can better and more realistically simulate the real environment.
Lower maintenance requirements:The equipment is simple to maintain. Simply performing daily maintenance as much as possible during the test can greatly increase the life cycle of the equipment and make customers more worry-free.
